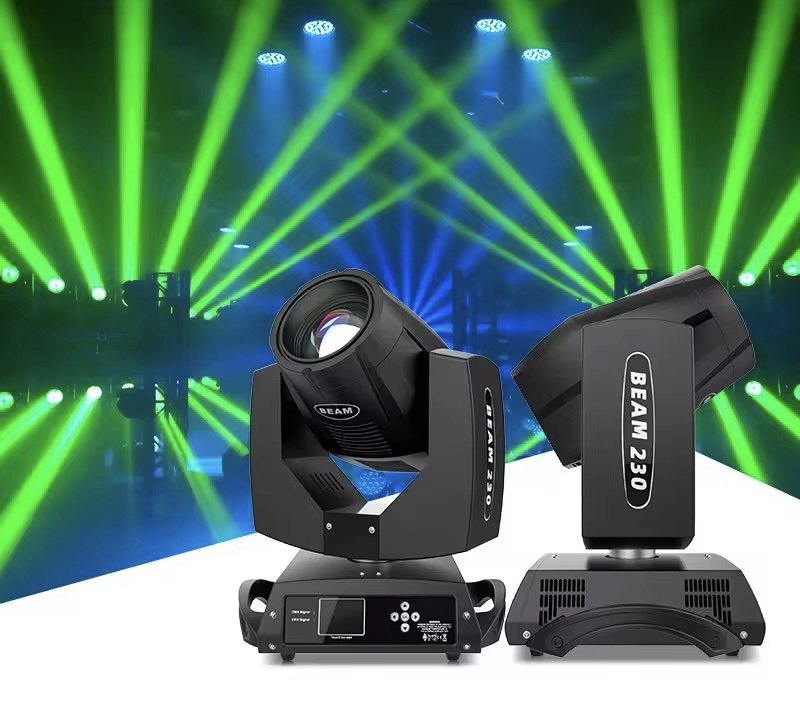

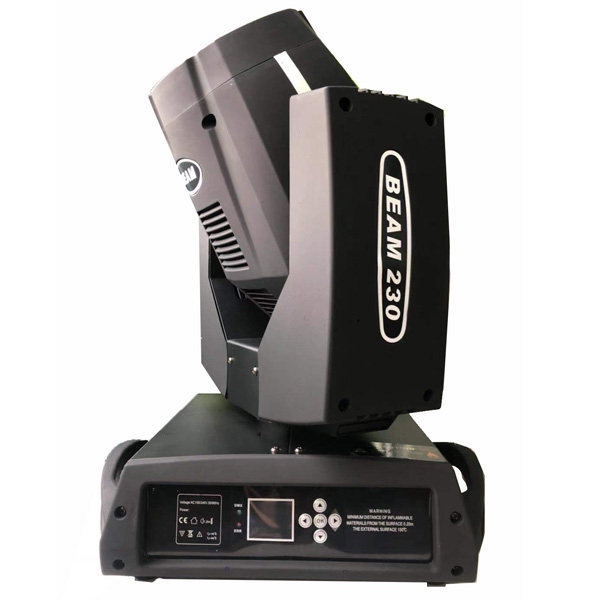

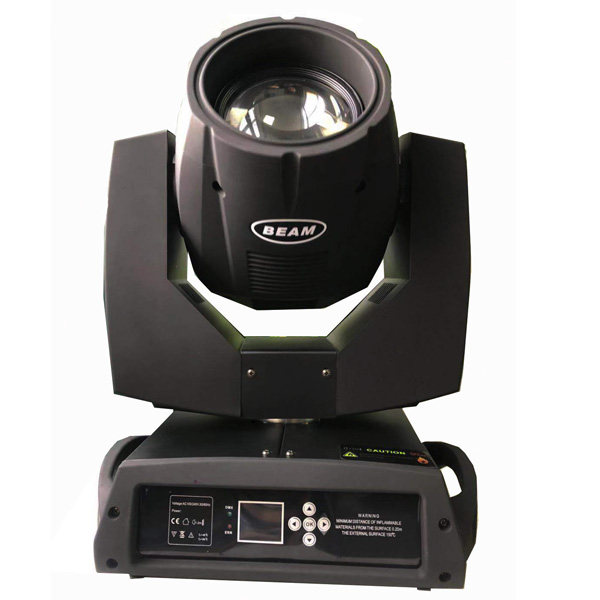

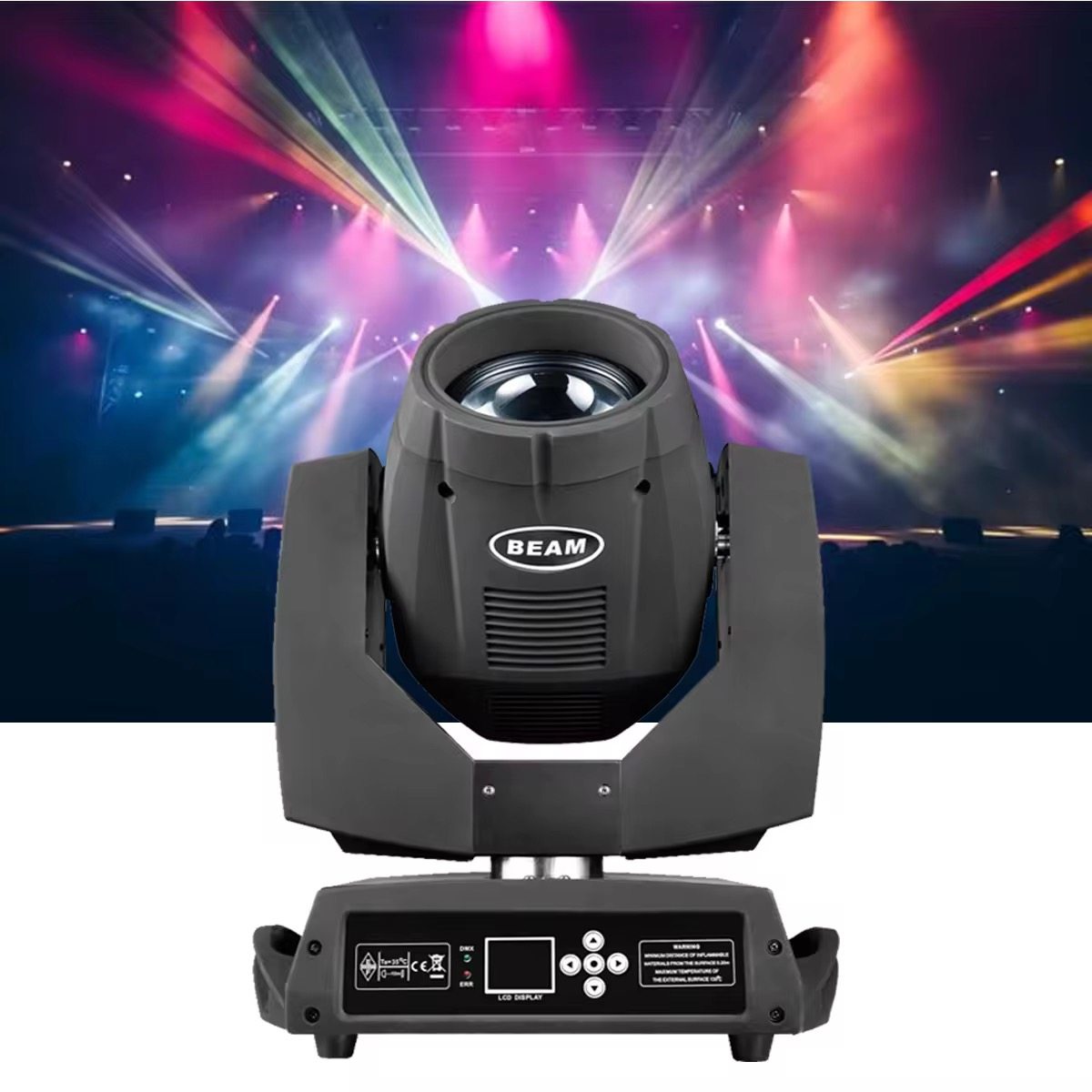

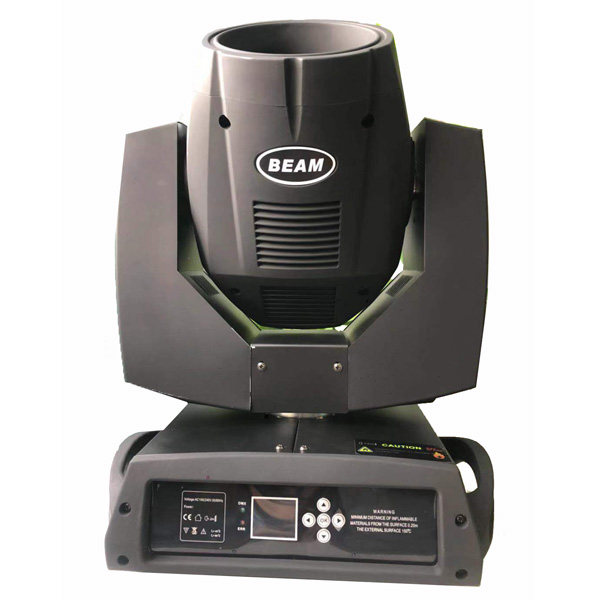

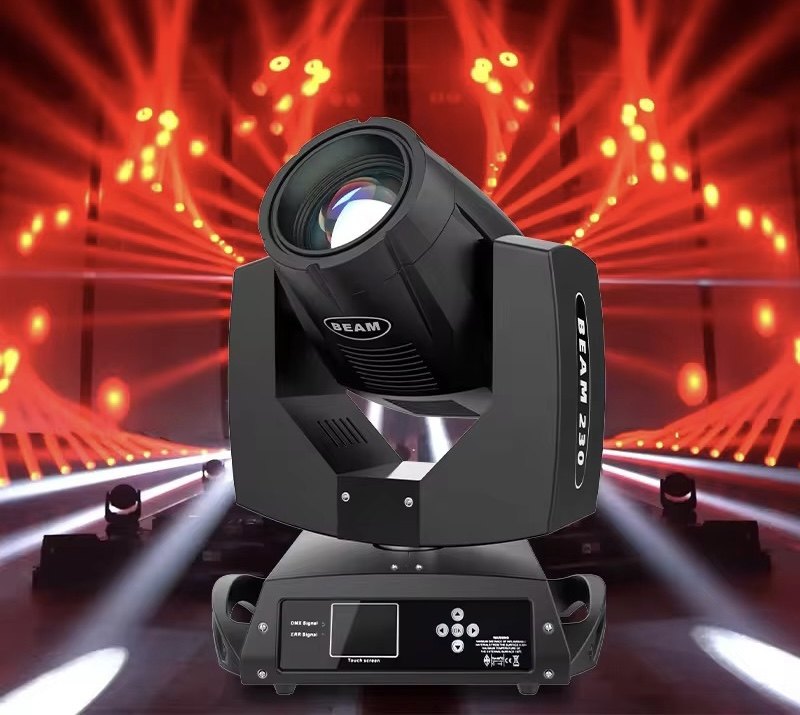

230w 7R sharpy beam moving head light

Model

WMB-230

Light source

230w lamp

Power consumption

400w

Voltage

110v-250v/50-60HZ

Dimmer

0-100%

Beam angle

3°

DMX channel

16/20 channels

Control mode

Auto run, Master-slave, Sound activated, dmx512

Light size & weight

41x29x51cm,15.7kgs

Packing size & GW

 46x42x56cm, 23kgs  (1pc carton)

Packing size & weight

82x50x73cm,60kgs( 2in1 flight case )

Packing size & GW

98x73x90cm, 117kgs( 4in1 flight case with clamps installed)

Pan & Tilt

540° / 270° (16bit) Electric correction

Fixed Gobo wheel

  17 gobos +open

Color wheel

14 colors +open

Prism

16prism

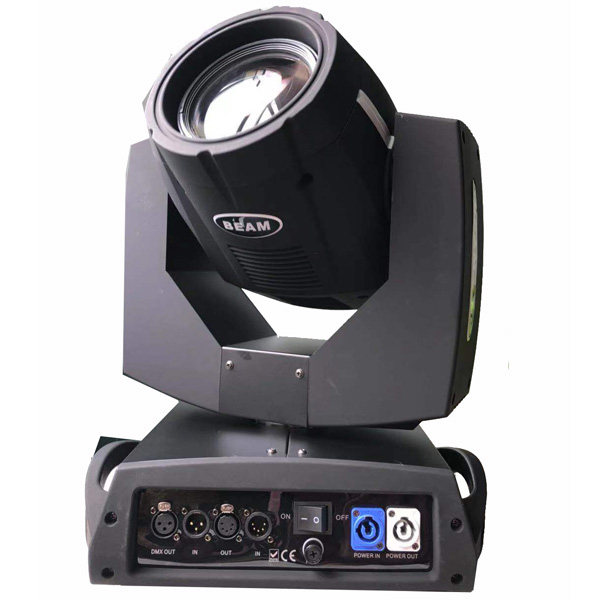

Data connectors

3&5 pin in and out

Power connectors

Powercon in and out

Display

180 degree reversible LCD display

Protection rating

IP20
